chevron CONVEYOR BELT
chevron conveyor belt
Built for Steep Inclines AND Reliable Material Flow.
The Shriram Beltings Chevron Conveyor Belt is specially designed for efficient conveying of bulk materials and packaged goods on inclined conveyor systems. Featuring integrally molded chevron cleats, these belts provide superior grip, prevent material rollback, and ensure smooth transportation at steep angles where conventional flat conveyor belts cannot perform effectively.
Manufactured using premium-quality rubber compounds and high-strength EP/NN fabric carcass, our Chevron Conveyor Belts deliver outstanding durability, flexibility, and long service life across demanding industries such as mining, cement, power generation, agriculture, ports, recycling, and bulk material handling.
Product Specifications
| Specification | Details |
|---|---|
| Belt Width | 400 mm to 1600 mm |
| Cleat Heights | 8 mm to 25 mm |
| Carcass Type | EP Fabric / Nylon-Nylon (NN) |

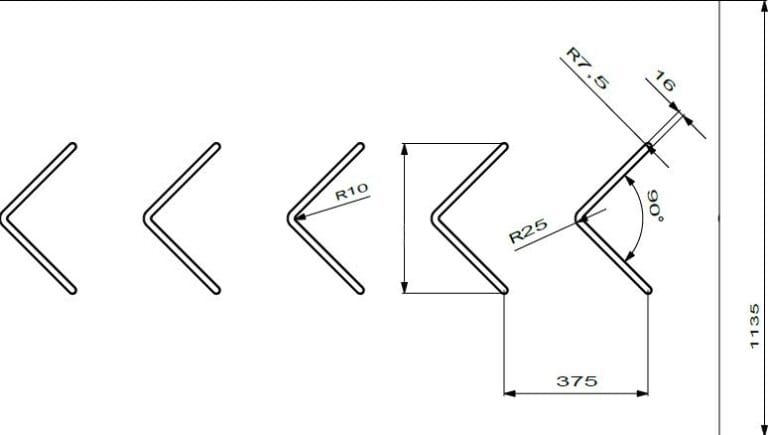

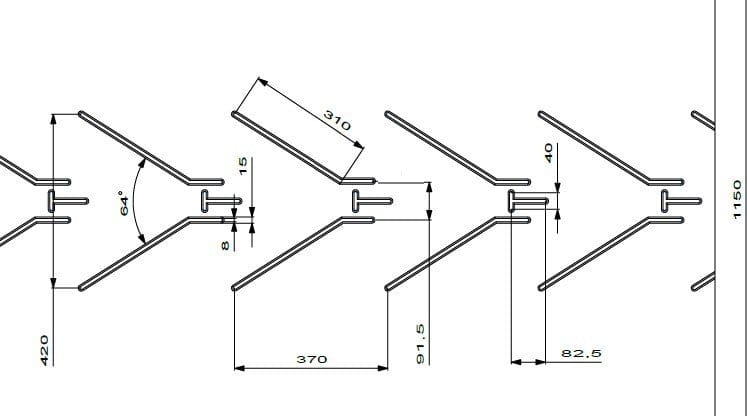

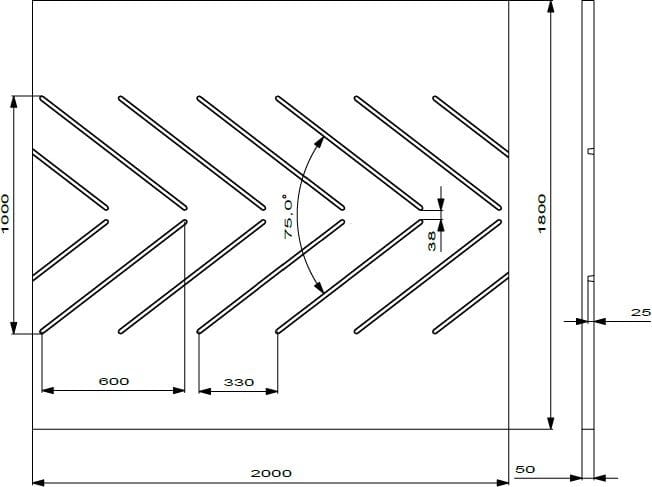

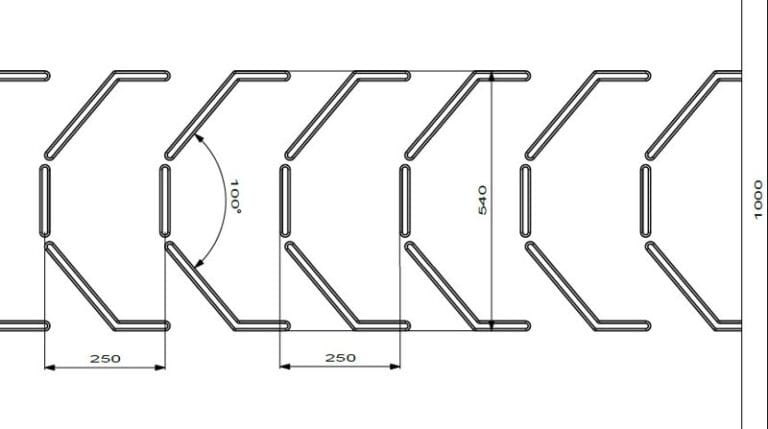

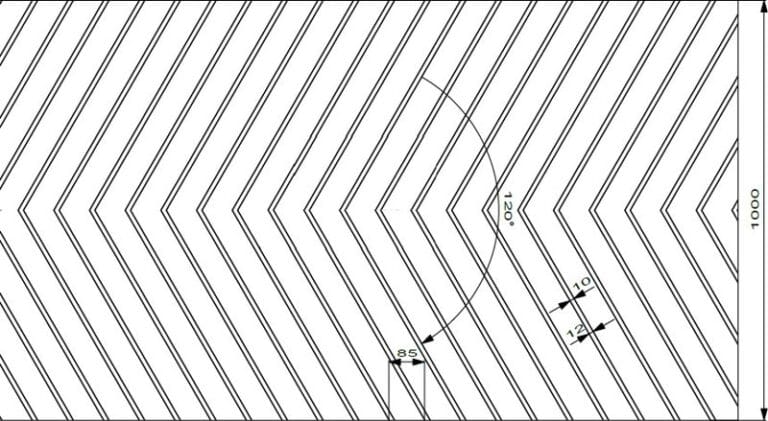

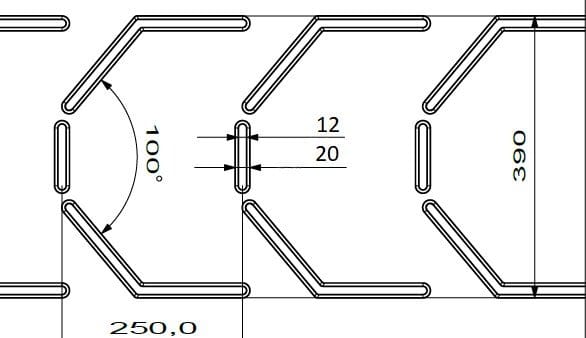

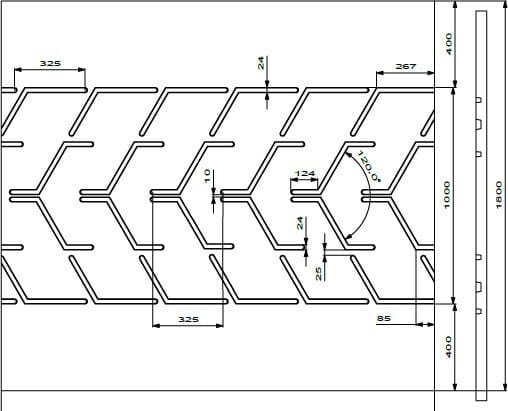

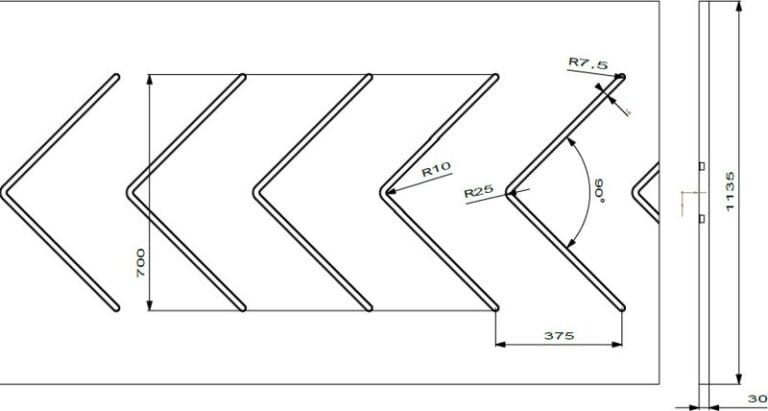

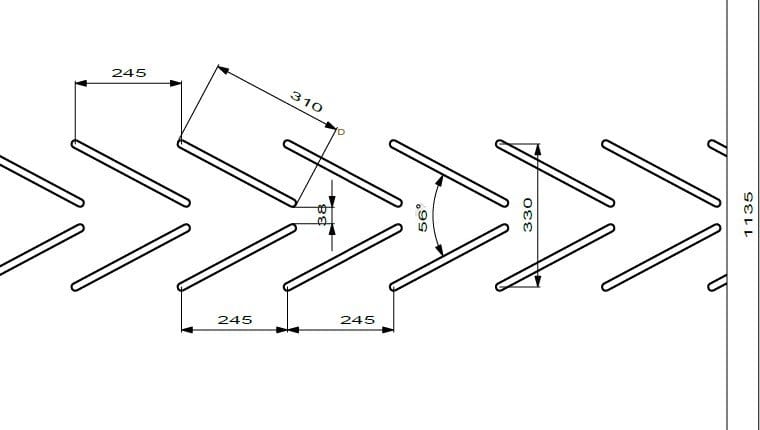

| Profile Types | V-Type, Open V, Closed V, U-Type & Custom Designs |
| Inclination Range | Up to 40° and above (application dependent) |
| Cover Grades | M24, N17, Heat Resistant, Oil Resistant, Fire Resistant |
| Edge Type | Cut Edge / Moulded Edge |
| Construction | Multi-Ply Fabric Reinforced |
Key Features & Benefits
Prevents Material Rollback
Specially designed chevron cleats provide excellent grip, preventing materials from sliding backward on inclined conveyors and reducing product loss.
Integrally Molded Cleat Design
The chevron profiles are vulcanized directly with the base belt, creating a strong, seamless construction that eliminates the risk of cleat separation.
Handles Steep Conveyor Angles
Ideal for conveying materials on slopes ranging from 25° to 40° and beyond, depending on material characteristics and conveyor design.
Superior Wear Resistance
Manufactured using high-quality rubber compounds to withstand abrasive materials and harsh operating conditions.
Smooth Belt Tracking
Designed for stable operation over pulleys and return idlers while maintaining excellent flexibility and tracking performance.
Low Maintenance Operation
Self-cleaning profile designs reduce carryback, minimize maintenance requirements, and improve overall conveyor efficiency.
Industries & Applications
Mining & Quarrying
Efficient transport of coal, limestone, iron ore, crushed stone, granite, sand, and aggregates on inclined conveyor systems.
Cement Industry
Ideal for conveying clinker, limestone, gypsum, raw meal, and other cement manufacturing materials.
Power Plants
Reliable handling of coal, fly ash, biomass fuels, and other bulk materials in power generation facilities.
Agriculture & Fertilizer
Suitable for transporting grains, seeds, fertilizers, potatoes, sugar, and other agricultural products.
Recycling & Waste Management
Designed for moving recyclable materials, scrap products, and industrial waste on inclined conveyors.
Ports & Bulk Material Handling
Widely used for loading and unloading coal, minerals, aggregates, and other bulk commodities.
Why Choose Shriram Beltings Chevron Conveyor Belts?
At Shriram Beltings, we understand that conveyor performance directly impacts productivity. Our Chevron Conveyor Belts are manufactured using advanced production techniques, premium raw materials, and strict quality standards to deliver reliable performance even in the most demanding environments.
Our Advantages
✔ Integrally molded chevron cleats for maximum durability
✔ Excellent grip on steep inclines
✔ High-strength EP/NN fabric reinforcement
✔ Multiple profile designs and cleat heights available
✔ Custom widths, lengths, and cover grades
✔ Reduced material spillage and product loss
✔ Long service life with low maintenance requirements
✔ Trusted by mining, cement, power, agriculture, and infrastructure industries
Common Materials Conveyed
- Coal
- Limestone
- Clinker
- Iron Ore
- Crushed Stone
- Granite
- Sand & Gravel
- Aggregates
- Fertilizers
- Grains & Seeds
- Sugar
- Biomass Fuel
- Wood Chips
- Recyclable Materials
- Construction Materials
Looking for the Right Chevron Conveyor Belt?
Our technical team can help you select the ideal Chevron Conveyor Belt based on conveyor angle, material type, belt width, cleat height, operating conditions, and application requirements.
Contact Shriram Beltings today for expert guidance, custom specifications, and competitive pricing on Chevron Conveyor Belts for mining, cement, power, agriculture, and bulk material handling industries.
